• Standalone docs
• draw_3d named draw_vertex_buffer
• draw_3d/draw_model/draw_billboard no longer mess with the depth buffer
• file_read_line now includes newline, add file_read/write_byte
• Add string_set_char_at
• vector_clear and map_clear can clear multiple containers

Can draw in 2d also. Actually the difference is draw_3d (removed) manages the depth buffer but draw_vertex_buffer doesn’t. So if you’re drawing 3d geometry you’ll want to enable/disable depth write and test as required.

EDIT: here’s a better benchmark. I’m getting 3 million tris at 60 FPS. EDIT it’s 2 million textured with alpha testing

This is a 75px triangle (running at 1280×720 default window) benchmark to see how your system compares to PS2 running BooBoo. You should probably texture the triangle to get a more accurate result. I get about 900,000 textured and 1.2 million untextured per frame.

EDIT: PlayStation 2 claims max 16 million per second, that’s 266,000 per frame.

var tris
= tris 3000000

var font
= font (font_load "font.ttf" 32 1)

var vertex_buffer
call load_vb

set_projection (identity 4) (ortho 0 640 360 0)

function load_vb
{
	var verts faces colours normals texcoords

	var i
	for i 0 (< i tris) 1 next
		var x y
		= x (rand 0 1280)
		= y (rand 0 720)
		vector_add verts x y 0
		vector_add verts (+ x 6) y 0
		vector_add verts x (+ y 6) 0
		vector_add faces (+ (* i 3) 0) (+ (* i 3) 1) (+ (* i 3) 2)
	:next

	= vertex_buffer (create_vertex_buffer (@ verts) (@ faces) (@ colours) (@ normals) (@ texcoords) tris TRUE)

        vector_clear verts
	vector_clear faces
}

function draw
{
	enable_depth_test TRUE
	enable_depth_write TRUE
	draw_vertex_buffer vertex_buffer
	enable_depth_test FALSE
	enable_depth_write FALSE

	font_draw font 255 255 0 255 (string_format "%(.0f)" tris) 5 50
}

function event type a b c d
{
	if (== type EVENT_KEY_DOWN) key
		if (== a KEY_UP) up (== a KEY_DOWN) down
			= tris (+ tris 100000)
			destroy_vertex_buffer vertex_buffer
			call load_vb
		:up
			if (> tris 100000) go
				= tris (- tris 100000)
				destroy_vertex_buffer vertex_buffer
				call load_vb
			:go
		:down
	:key
}

• Add VBOs for create_vertex_buffer (optional last boolean parameter) for greater speed
• Fix winding order of faces in lit3d, 3dcube and DOOMED examples now that we are culling backfaces
• vector_clear now free memory not just vec.clear()

The vertex buffers in BooBoo 3.0.12 are just a streamlined format, they’re quite a lot faster but the next version will have a boolean to create a VBO. I tested it and I get 900,000 tris per frame, up from 600,000.

EDIT: the playstation 2 can do about 250-275,000. I’m sure with programmable shaders though you can do a lot more than a PS2.

• Fix loading of multiple the same models
• Turn multisampling off by default
• Add set_front_face and constants
• Document model_clone
• draw_3d* now requires creation of a vertex buffer with (create_vertex_buffer)
• Don’t set cull mode every frame

I’ve found draw_3d* to be quite slow so I added vertex buffers. You must use one to use draw_3d.

I’ve found I can draw double the triangles of a PlayStation 2 (with more features) on this PC… PS2 can draw 16 million 75 px tris per second and I can double that with vertex buffers. That’s around 550,000 tris per frame.

I can get 100 of these lit/individually animated models at 60 FPS.

That’s with lighting.

EDIT: the model has 494 triangles btw

EDIT2: it’s double (200 models) without animation

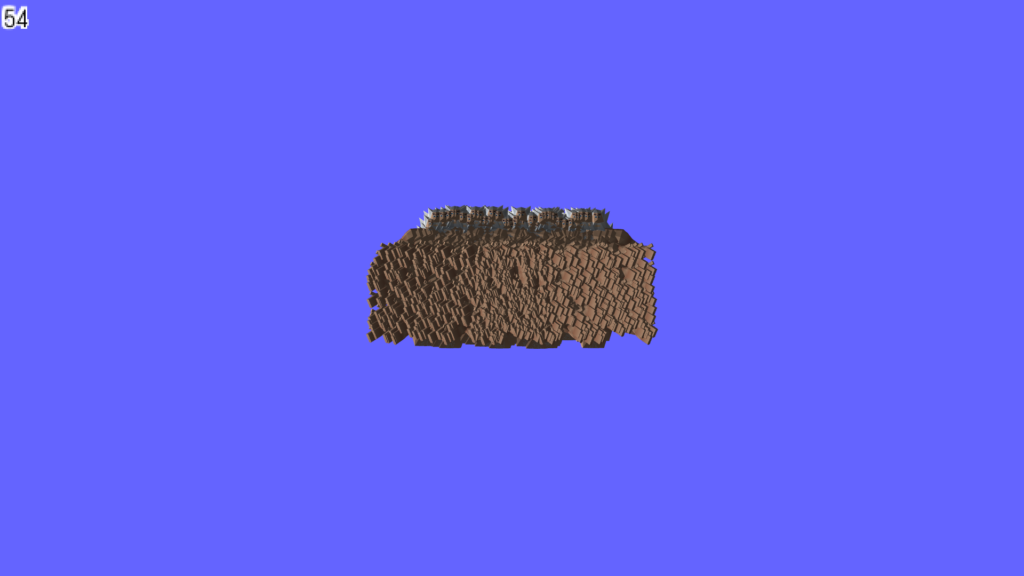

EDIT3: It also depends on pixel coverage, this scene with 375 models renders about 60 FPS:
